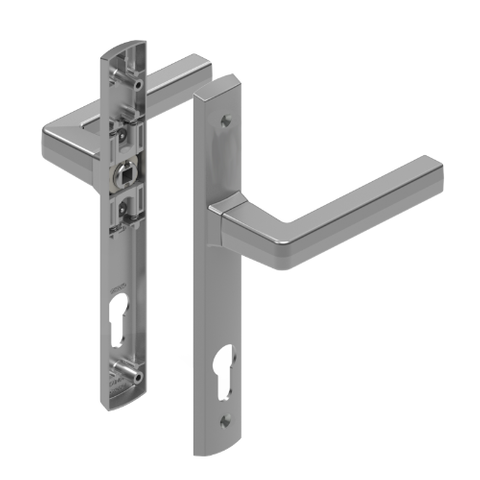

ACACIA HANDLE SET STANDARD LOCKING - POPULAR COLOURS
Description

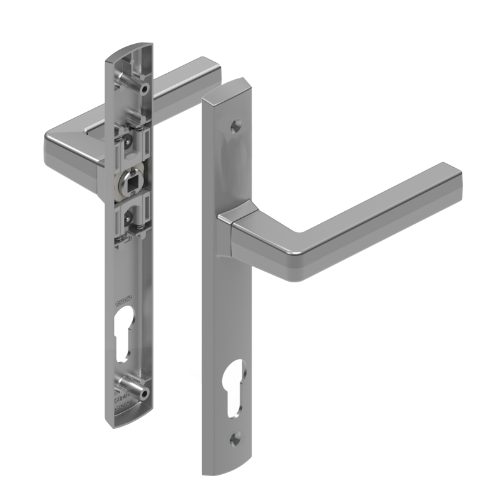

Yale Acacia Palladium Lever Set
The Palladium Series represents the highest standard in residential and semi-commercial door hardware and is brought to you through modern innovative designs, combined with quality manufacturing. A wide range of lever options is available to enable a common style throughout the home.
The Yale Acacia is a style developed by ASSA ABLOY that has been fashioned into a contemporary and elegant furniture range. Complementary to modern joinery with its clean lines accentuated by square edges, the Yale Acacia range is encompassed by a number of ASSA ABLOY window and door hardware products. Available in an array of colour finishes, choosing Yale Acacia allows for continuity of aesthetics throughout the home.
Features
Yale Acacia furniture ensures a consistent look can be achieved throughout the building
Locking function
Internal and External locking plates accepts Euro cylinder (cylinder not included)
Non-handed
Solid metal lever and escutcheon
Includes 7.6mm square stepped spindle
Visible internal and concealed external fixing
M4 Trilobial thread cutting screws into non-threaded screw posts
Plates are designed to fit back to back to be fully concealed externally
The mechanism incorporates a lever handle torsion spring and shuttle mechanism which provides a positive feel and increased product life
Polyester powdercoat finish
Supplied in trade pack
New Zealand designed
Operation
These are used on the active door of either single or double doors. The outside furniture has concealed fixing, the inside furniture has visible fixings. Either a double cylinder or cylinder and turn will operate the draw bolt and locks the handle. The handle operates the latch on the lock and throws bolts when used with a compatible multi point lock.
Suitability
Residential and semi-commercial buildings, with Yale Optimum, Induro and Union mortice locks.
Materials
All plates and levers in the are constructed from solid zinc die-cast.
Door Thickness
Minimum: 32mm
Maximum: 45mm
Plate Dimensions
Height: 222mm
Width: 30mm
Depth: 5mm
Pitch: 85mm
Fixing centres: 182mm
Lever Dimensions
Length: 122mm
Projection: 56mm
Finger clearance: 41mm
Kit Includes
1 x Yale Acacia lever plate - LPL10068529
1 x Yale Acacia lever plate - LPL10088529
1 x Yale 92mm x 7.6mm spindle - P35500
1 x Yale 104mm x 7.6mm spindle - P35501
1 x Yale screw pack - 100063
Finish
Available in the Popular range of powdercoat colours
