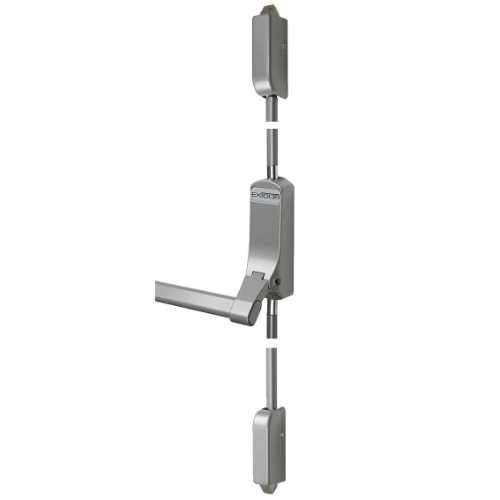

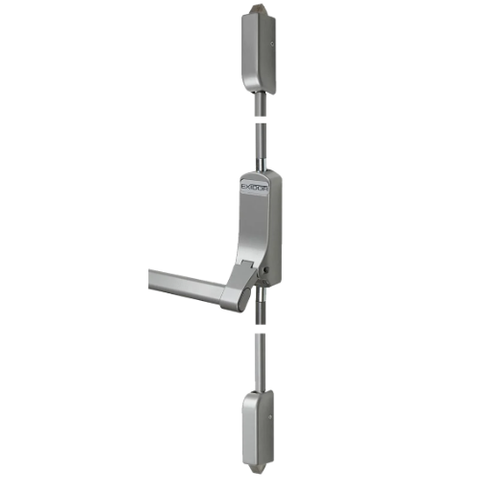

LOCKWOOD EXIDOR 2PT PUSH BAR WITH VERTICAL PULLMAN LATCH
Description
EXIDOR Single Point Push Bar with Vertical Pullman Latch
A single panic bolt with vertical pullman latches.
The Exidor 311 offers all the elegance and functions of an Exidor single panic bolt with the added feature of vertical pullman latches which increases the security and offers a smooth latching action. Exidor push bar panic vertical Pullman latch that is simple to install, supplied with timber or steel door keeps and fixings. The unit is operated by pushing the pad down into the door face to retract the latch bolts, releasing the pad returns the latch bolts to the rest position.
The Exidor 311 Push Bar Panic Vertical Pullman, A Reliable Emergency Exit Solution. This Easy-to-install Latch Features A Smooth, Quiet Action And Vertical Latching For Secure Closure. Suitable For Timber And Metal Doors, It Meets EN 179 Standards. Choose Your Finish And Ensure Safety With Style!
Features
Non-handed
Surface mounted
Closed arm design
Standard size panic bolts are suitable for single doors up to 1220mm wide and 2440mm high
Pullman latches offers a smooth and quiet latching action
Vertical latching action secures the door to threshold or transom details
Easy to install emergency solution with top and bottom locking points
Supplied with timber or steel door keeps and fixings
Easily cut down on site to suit each individual doorset
Supplied in trade pack
Specifications
Activation: Push Bar
Bolt Style: Vertical Pullman Latches
Cylinder Included: No
Door Opening: Outward
Handing: Universal
Keep Detail: Standard
Locking Points : 2
Mounting Method: Surface Mounted
Operation Type: Push
Operator Detail: Push Bar
Dimensions
Maximum Door Height: 2440mm
Door Thickness: 46mm To 51mm
Maximum Door Weight: 200kg
Maximum Door Width: 1220mm
Projection: 98mm
Finish
